📂 DXF FILES ONLY – Instant Download

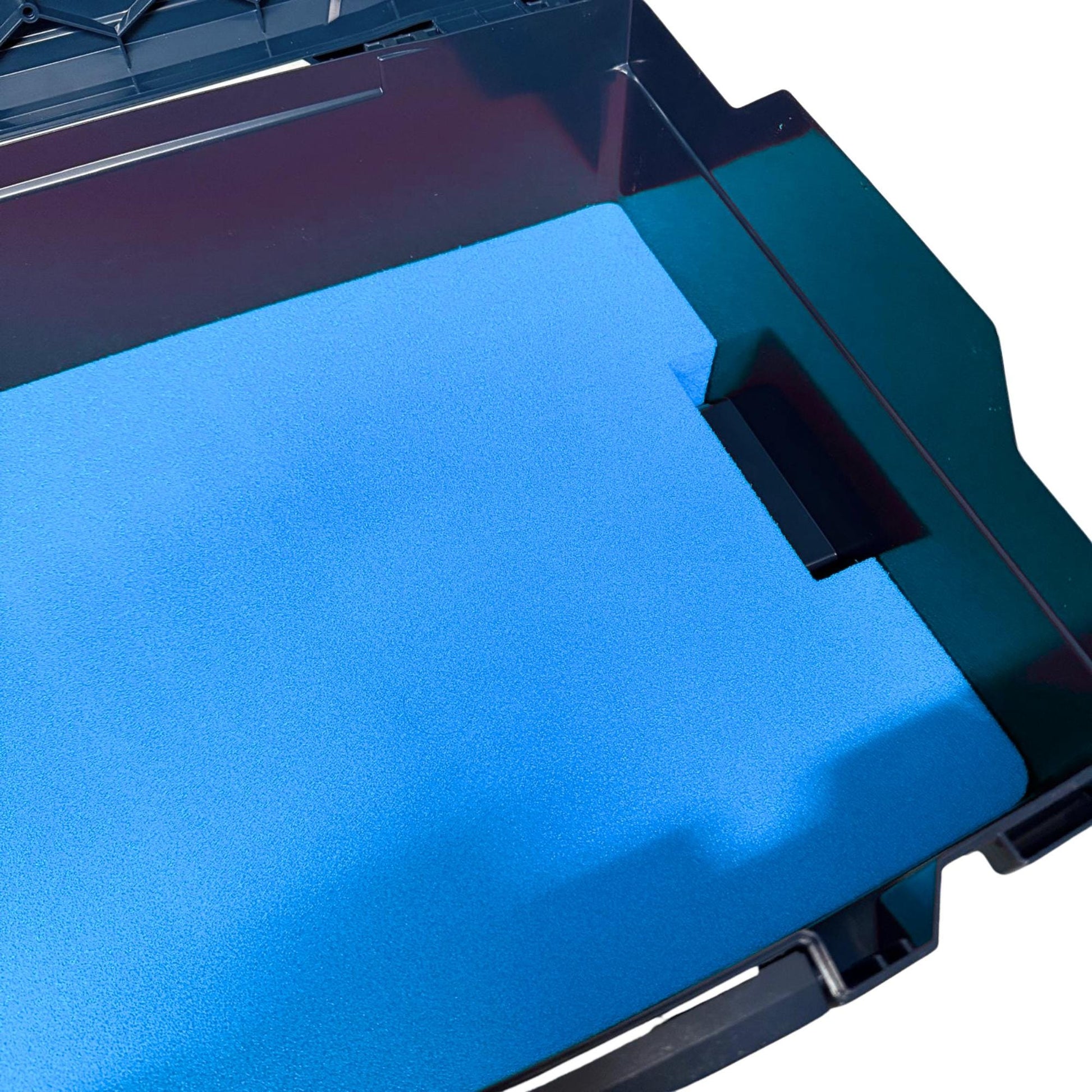

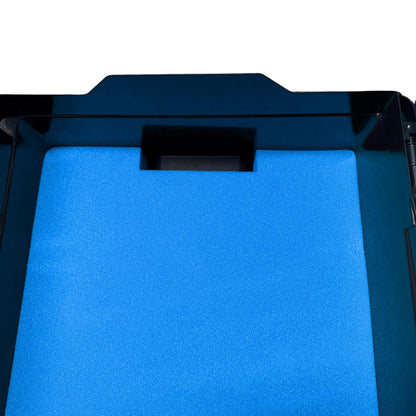

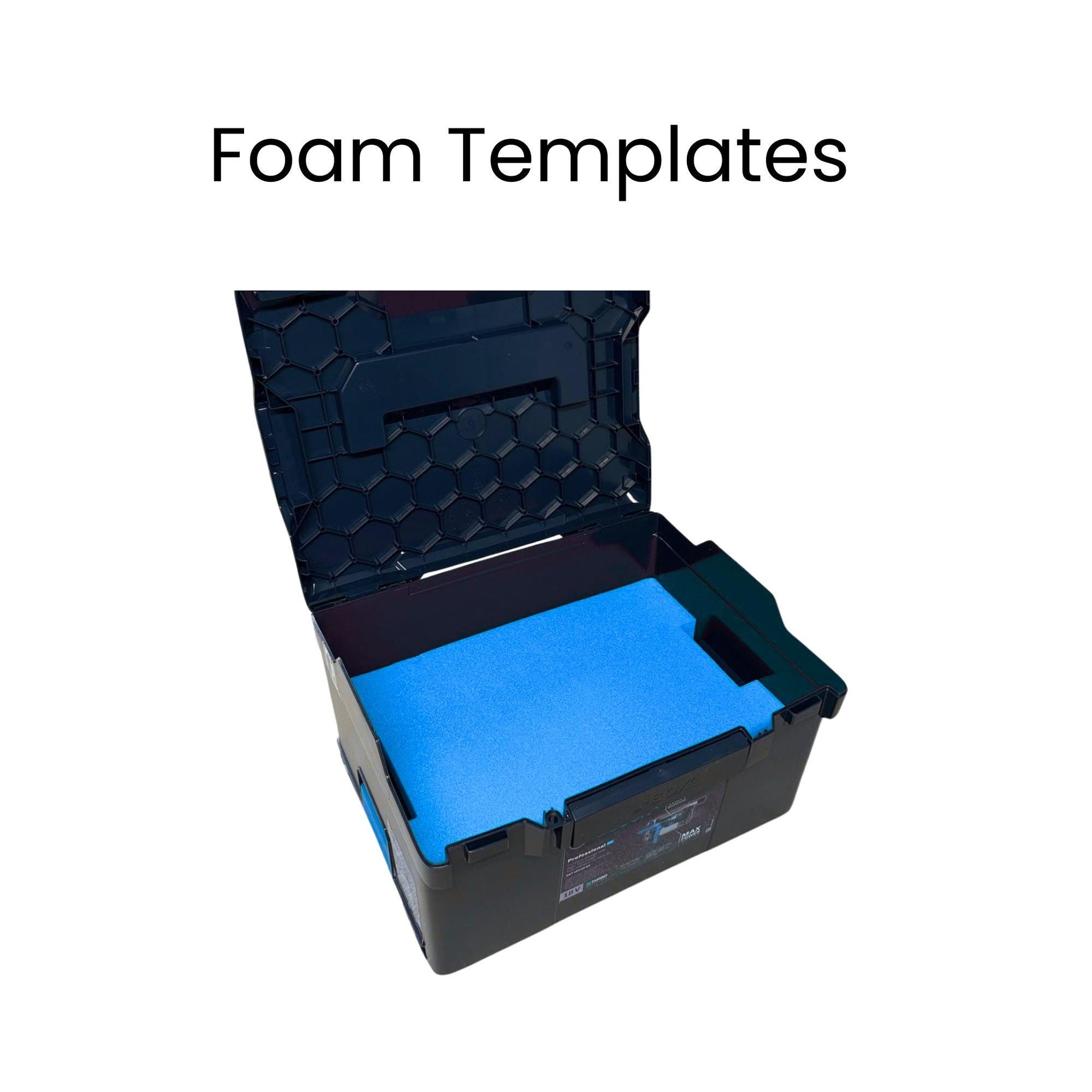

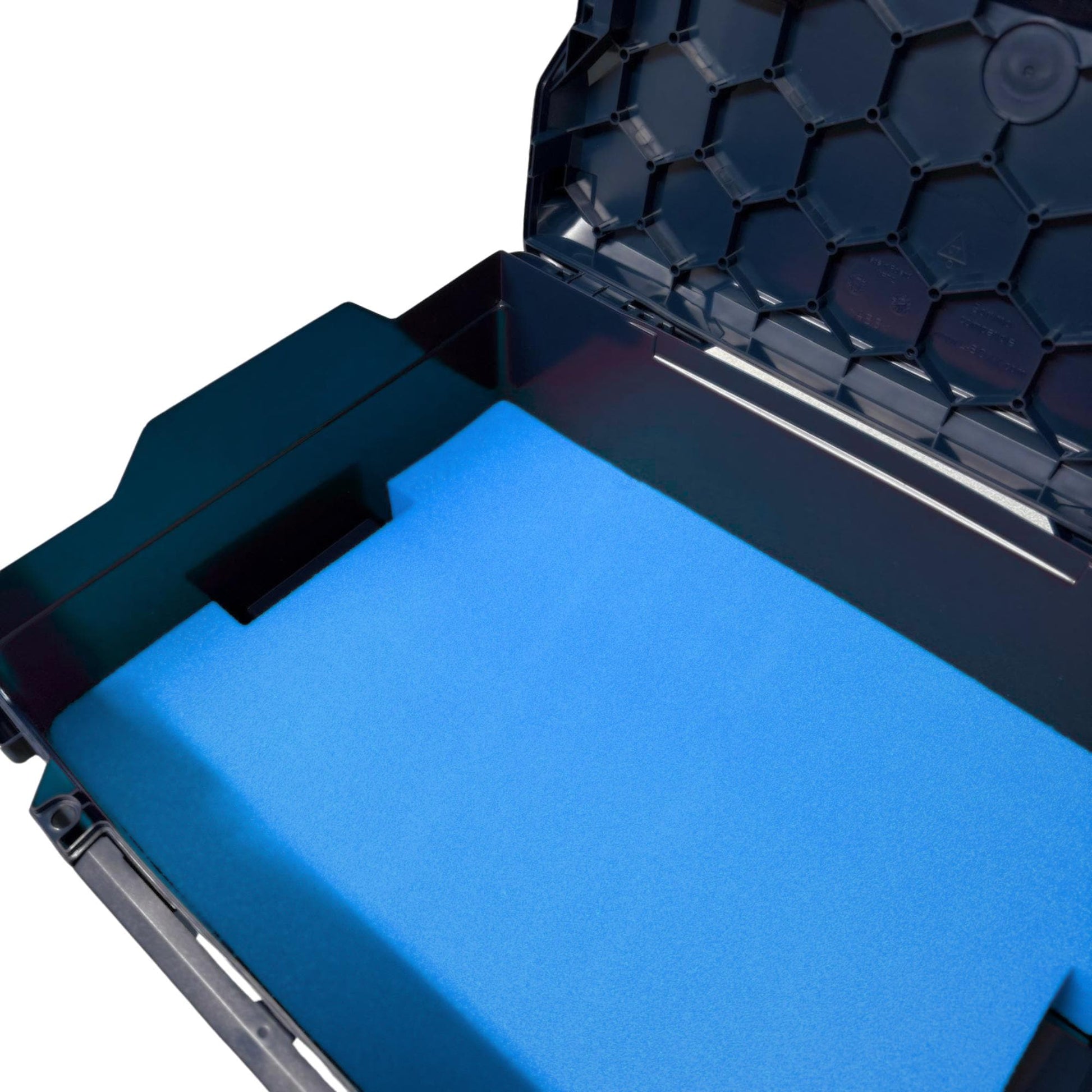

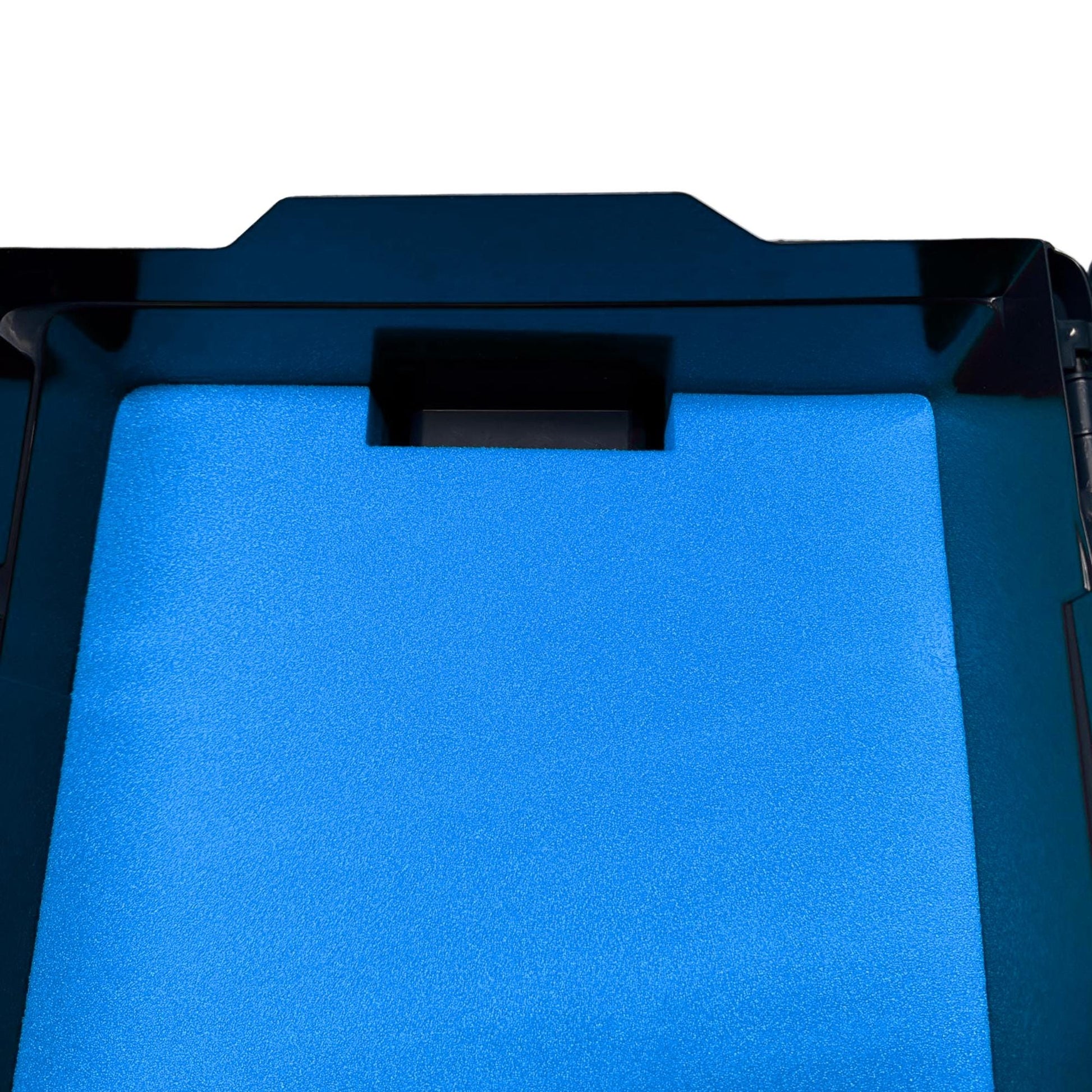

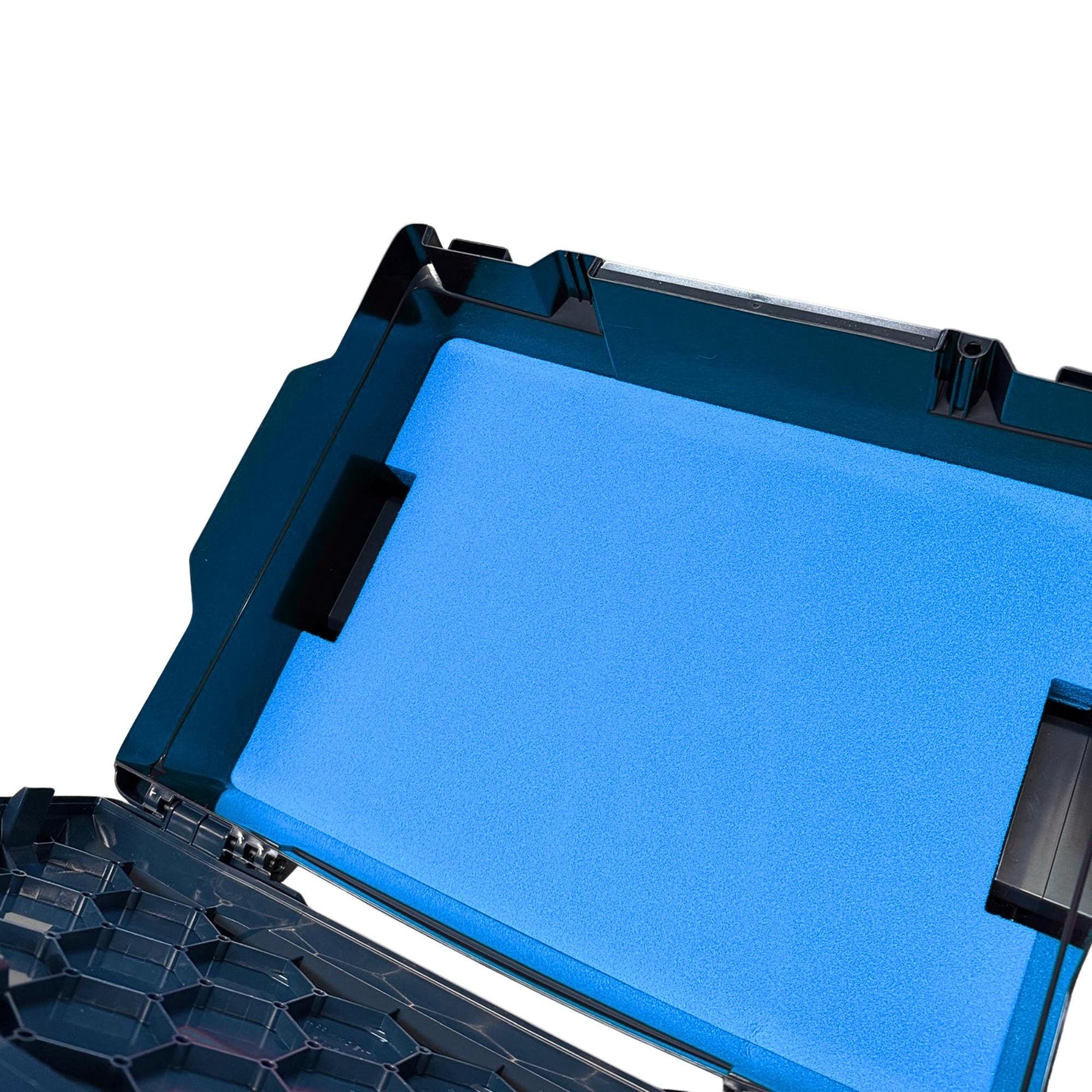

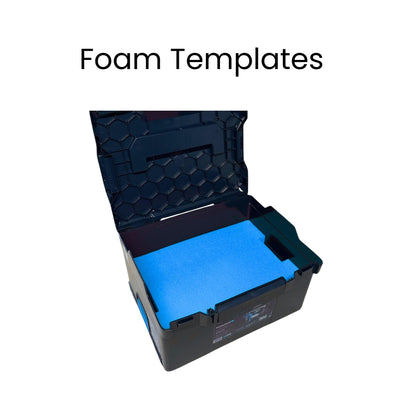

High-precision DXF foam insert template designed to fit the Bosch L-BOXX 3 system.

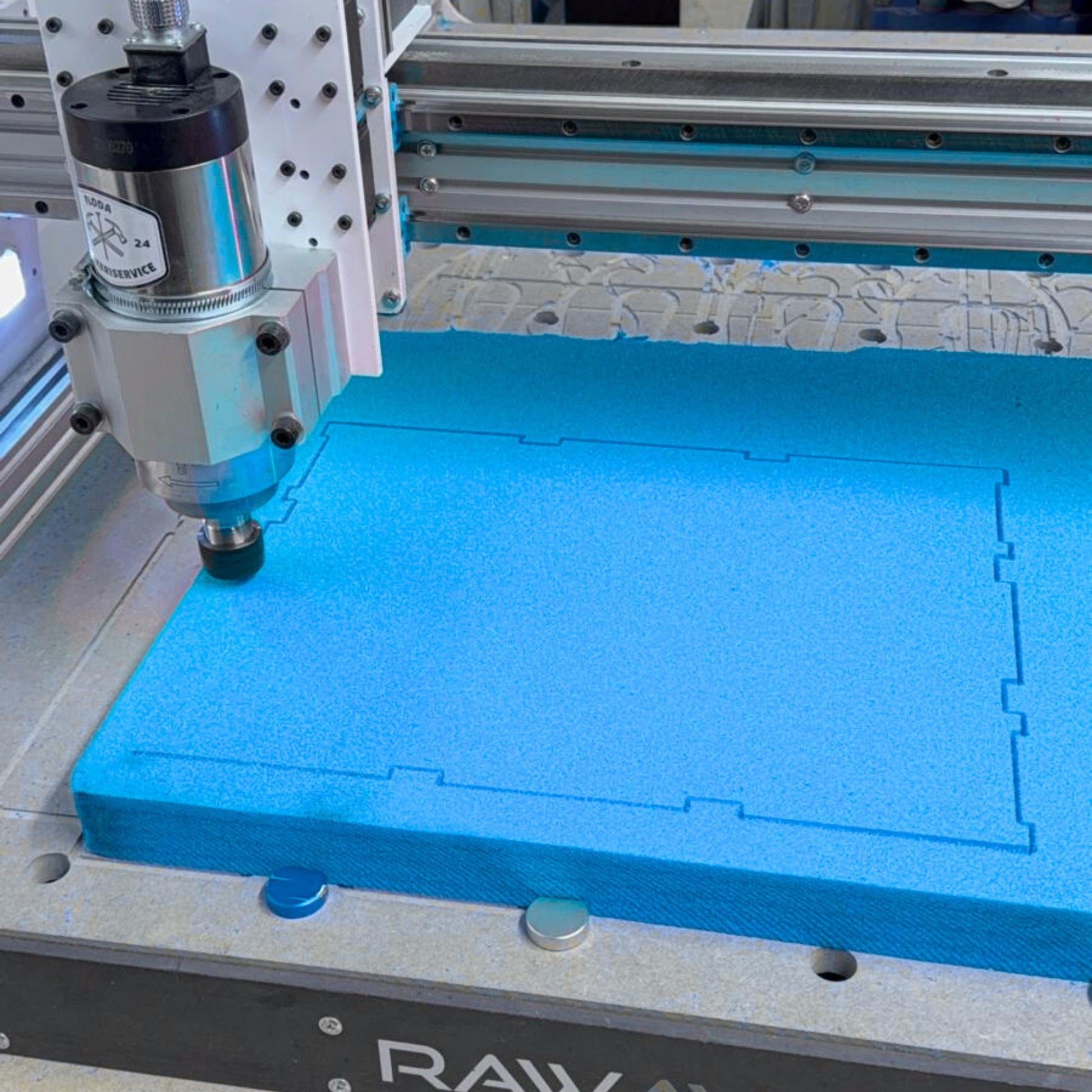

Use as a cutting pattern for EVA, PE, or XPS foam to create clean, professional tool organisation in workshops, garages, or service vehicles.
This template includes the exact internal contour of the box only, giving you full freedom to design your own custom tool layout.
🧰 YOU RECEIVE:
• LBOXX3_MM.dxf (millimeters, units embedded)
• LBOXX3_INCH.dxf (inches, units embedded)
✅ NOTES:
• DXF files only – no physical product included
• Units correctly defined using DXF $INSUNITS
• Designed as a template for cutting foam
• Test fit recommended (foam compression may vary)
⚠️ IMPORTANT – FOAM HEIGHT PLACEMENT:

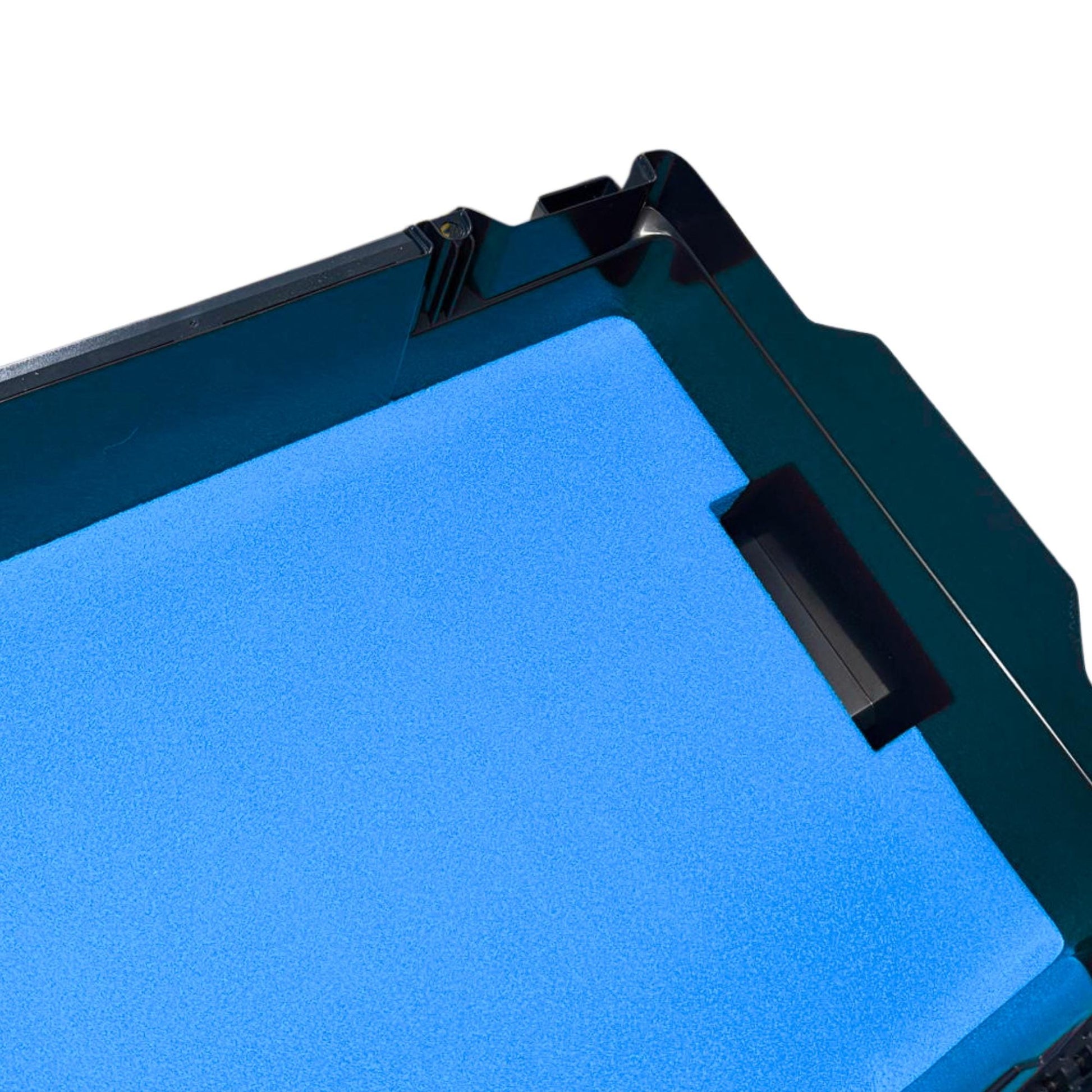

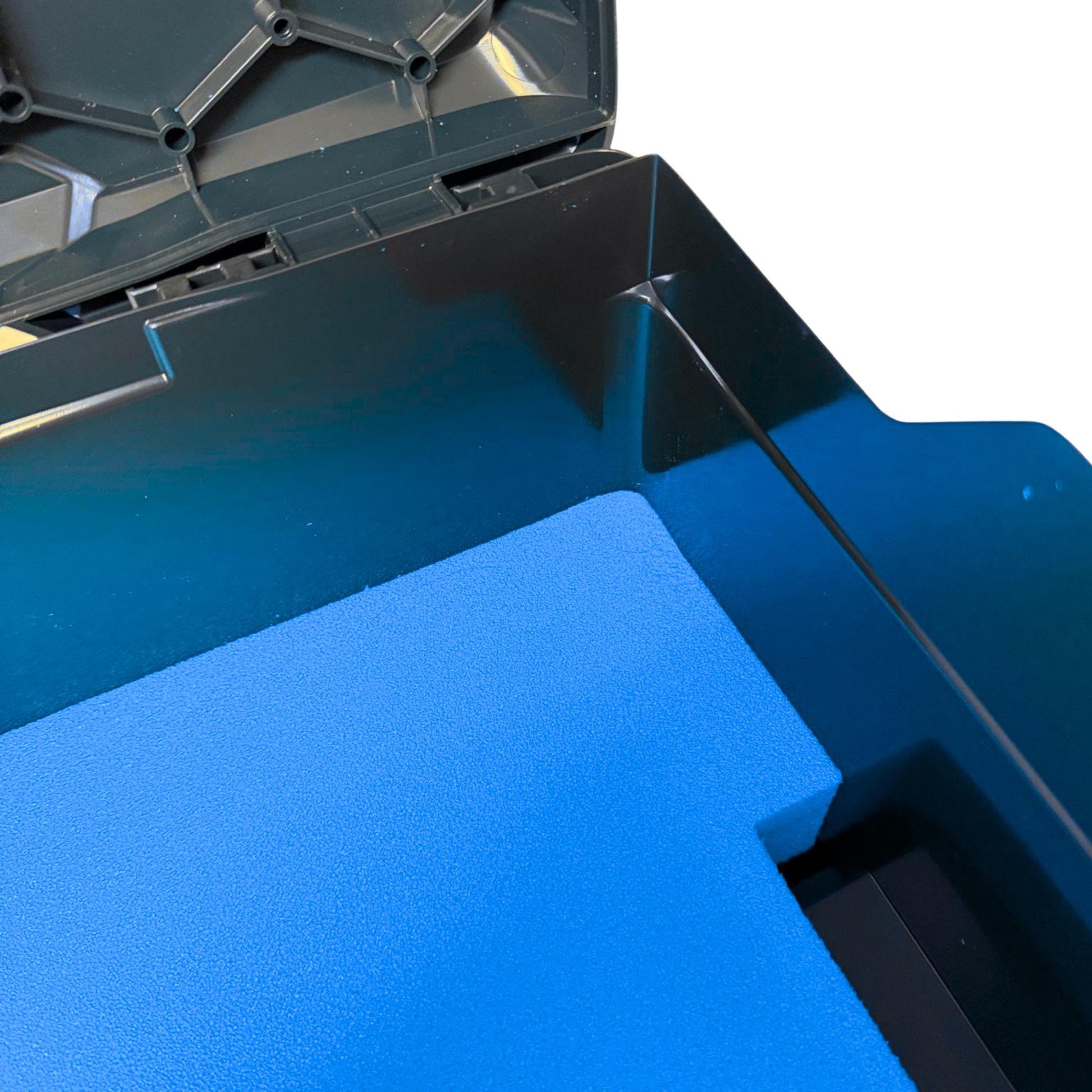

The internal wall geometry of the Bosch L-BOXX 3 changes depending on height.
It is critical that the foam is placed at the correct height inside the box.
If the foam sits too high or too low, the wall profile will differ and may affect fit and accuracy.
Always position the foam at the intended height level and test fit before final cutting.
⚠️ DISCLAIMER:
This is an independent, aftermarket digital design.
Not affiliated with or endorsed by Bosch.
Brand name is used for compatibility reference only.
No resale, sharing, or redistribution of the digital files.
